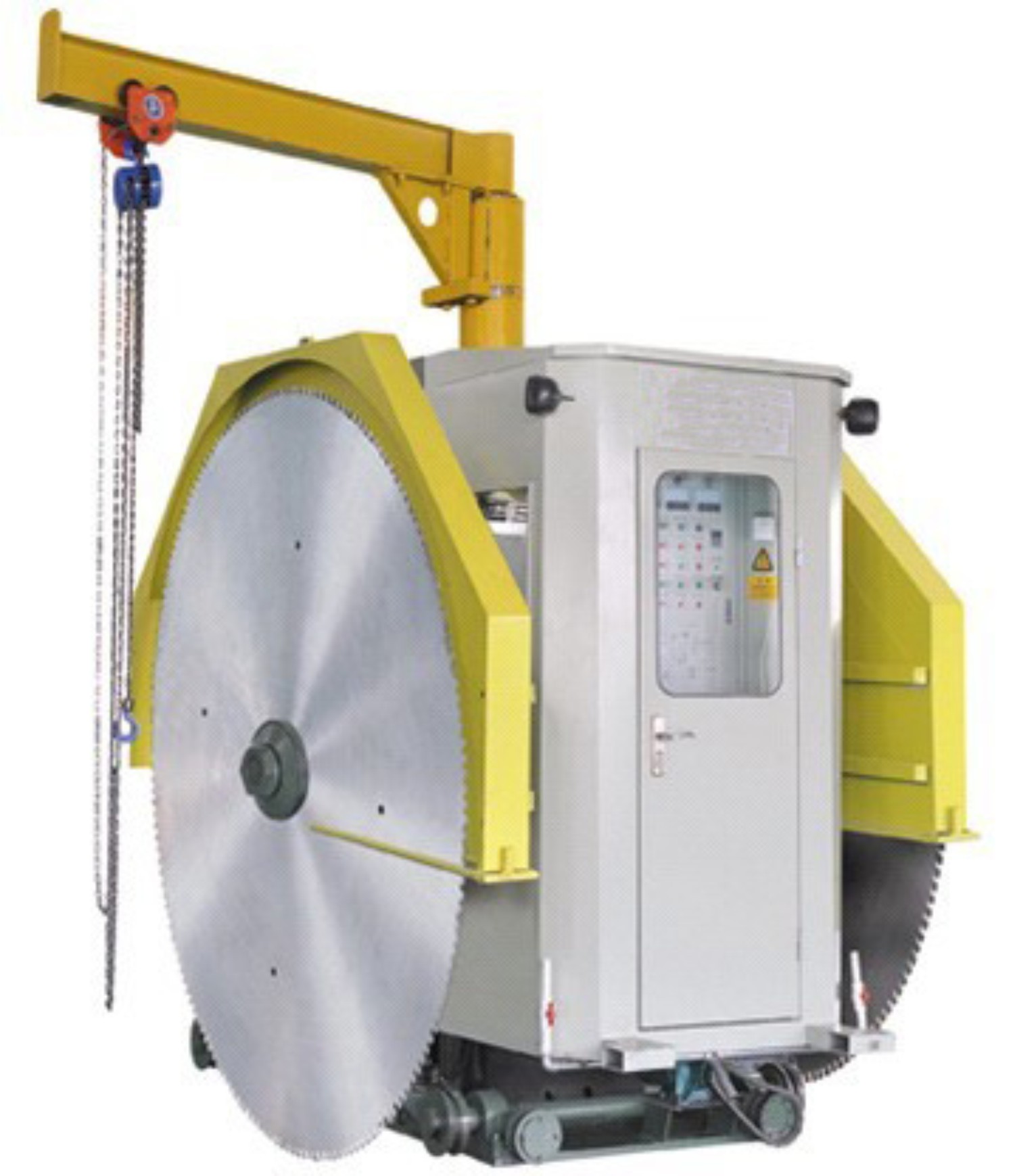

TJSN Series Double Blade Stone Cutter

1. Quarry stone cutting machine

2. High efficient and energy saving

3. Using diamond segment

4. Passed EC

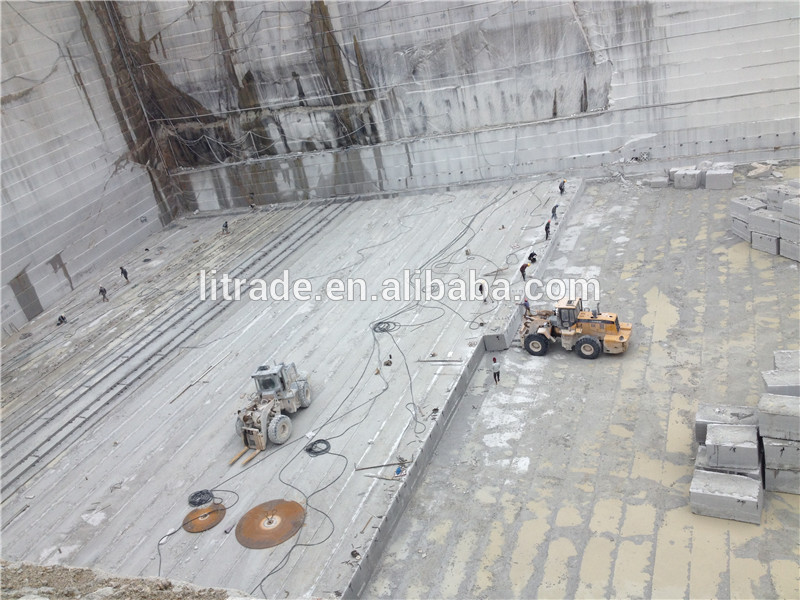

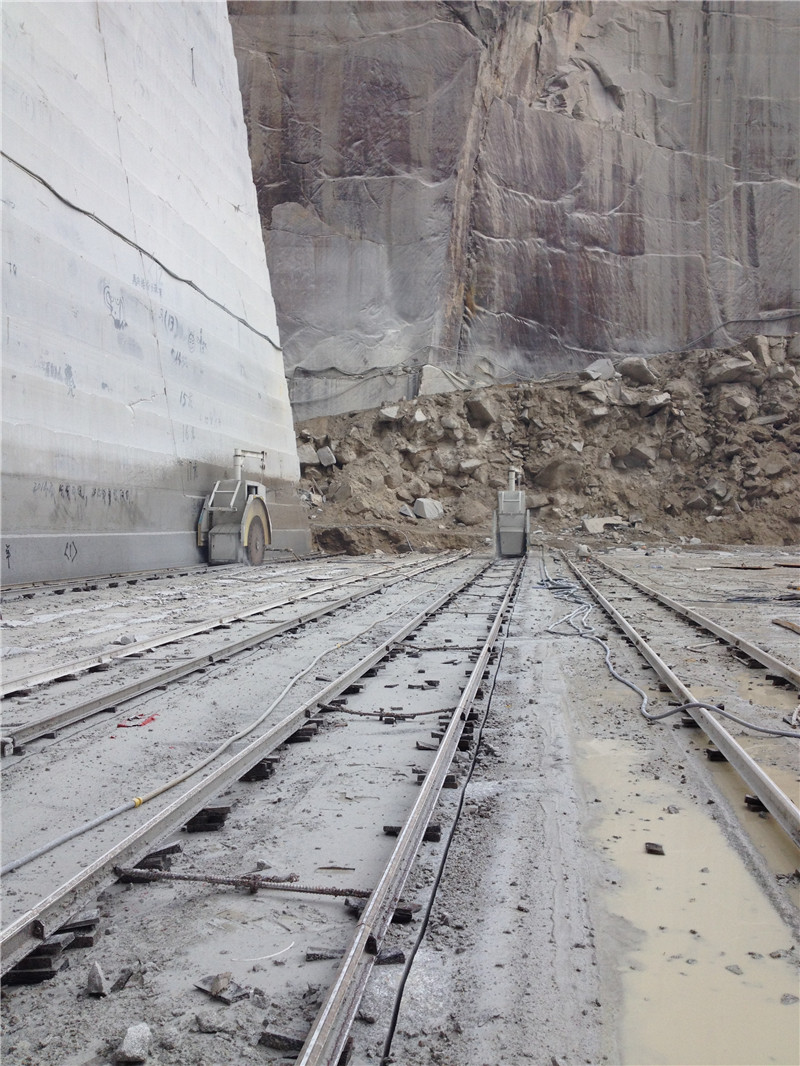

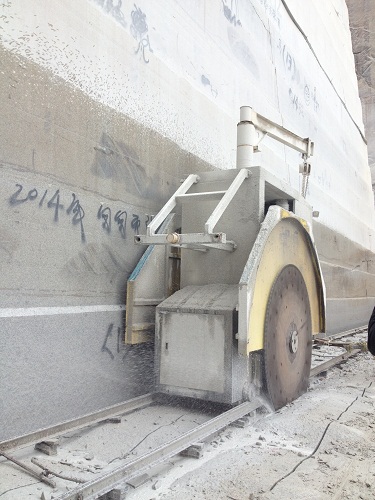

Quarry stone cutting machine is much popular to granite & marble quarry

1. This machine is a modification of original style.

2. The rising and falling of main spindle is controlled by the hydraulic pressure of the oil cylinder.

3. Four cylinders as the guide.

4. More efficient and energy saving.


This machine is a modification of original double-blade mining machine. The rising and falling of main spindle is controlled by the hydraulic pressure advantages are small gap,a little wear,no vibration,stable structure and high cutting precision;the service life of cutter head is increased.

The cylindrical guide rall is fully sealed to ensure that the guide rail id pollution-free and machine has an original lubrication system,so the service life and utilization ratio are effectively increased and maintenance times and costs are reduced.It is a mine quarrying machine with significantly increased comprehensive benefits.

Name

Unit

TJSN-1360/1900

TJSN-1500/2000

Diameter of blade

mm

2200-3600

2200-3600

Scope of cutting depth

mm

850-1550

850-1550

Scope of cutting width

mm

1360-1900

1500-2000

Power of main-drive

kw

45*2

45*2

Water consumption

m3/h

5

5

Total power

kw

97.7

97.7

Approximate weight

kg

6500-8000

6500-8000

Overall dimension(L*W*H)

mm

3600*1500*2700/3000

3600*1700*2700/3000



 Name

Unit

TJSN-1950/2450

TJSN-2600/3100

 Diameter of blade

mm

2200-4800*2

2200-4800*2

 Scope of cutting depth

mm

850-2200

850-2200

Scope of cutting width

mm

1950-2450

2600-3100

Power of main-drive

kw

45/55*2 (blades size upto 4m, should get 55KW motor)

45/55*2  (blades size upto 4m, should get 55KW motor)

Water consumption

m3/h

5

5

Total power

kw

 98.5/118.5

98.5/118.5

Approximate weight

kg

9500-10500

10500-12500

Overall dimension(L*W*H)

mm

4200/5100*2100*3100/3650

4200/5100*2700*3100/3650

1. Total lower investment than cutting diamond wire saw machine.

2. Can be used for both marble and granite quarry.

3. Higher efficiency.

4. Easier operation.

5. Less stone waste.

6. Tidy environment.
