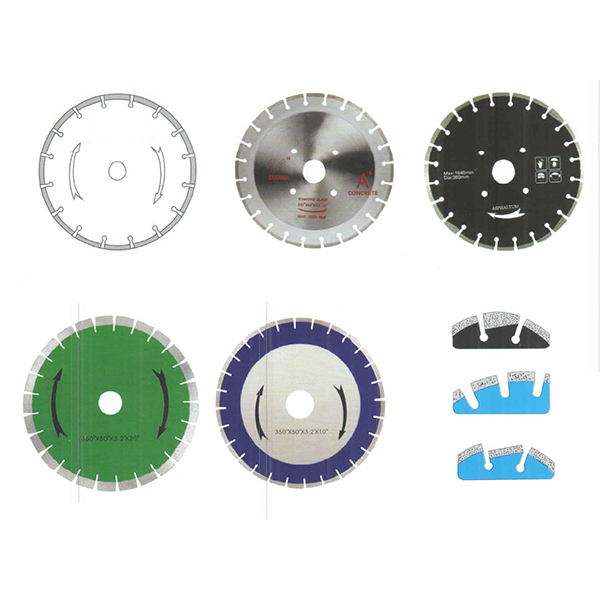

Diamond Segmented Circular Saw Blades

Stone cutting tools,circular saw blade, diamond blade

Smaller saw blade:

Turbo type,dry or water cutting

Silent model or normal model.
For marbe , granite , ceramic cutting
High quality

turbo bladeø105 20/ 22.23/ 25.4A+FULITB105H7mm
turbo bladeø11020/ 22.23/ 25.4A+FULITB105H7mm
turbo bladeø11520/ 22.23/ 25.4A+FULITB115H7mm
turbo bladeø12520/ 22.23/ 25.4A+FULITB125H7mm
turbo bladeø15020/ 22.23/ 25.4A+FULITB150H7mm
turbo bladeø18020/ 22.23/ 25.4A+FULITB180H7mm
turbo bladeø20020/ 22.23/ 25.4A+FULITB200H7mm
turbo bladeø23020/ 22.23/ 25.4A+FULITB230H7mm
turbo bladeø25020/ 22.23/ 25.4A+FULITB250H7mm
turbo bladeø30020/ 22.23/ 25.4A+FULITB300H7mm
turbo bladeø35020/ 22.23/ 25.4A+FULITB350H7mm



Larger saw blade

Dimension Scope: φ900mmφ2500mm.
Characteristics: Very easy cutting without swinging, long lifespan.





The following specification is only  for reference:





1.Same Diameter:

Diameter(mm)

Segment Dimension

Segment No. on one blade(pcs.)

Number Of BladesUsing Together(pcs.)

L × W × H(mm)

φ900

24 × 6.8/6.0 ×12/15

64

15-30

φ1000

24 × 7.2/6.4 ×12/15

70

15-30

φ1200

24 × 8.0/7.2 ×12/15

80

15-30

φ1600

24 × 9.0/8.2 ×12/15

108

10-20-30






2.Different Diameter:

Diameter(mm)

Core thickness(mm)

Segment Dimension

Segment No. on one blade(pcs.)

Combination(mm)

L × W × H(mm)

φ900

5

24 × 6.6/6.0 ×12/15

64

φ1600+φ1200+φ900

φ1200

5.5

24 × 7.5/6.5 × 12/15

80

φ1600

5.5

24 ×7.0/6.4 × 12/15

108

6.5

24 × 8.0/7.4 × 12/15

108

7.2

24 × 9.2/8.4 × 12/15

108

φ1800

5

24 × 6.4/5.8 × 12/15

118/120

φ1800+φ1600+φ1200+φ900

5.5

24 × 7.0/6.4 × 12/15

118/120

6.5

24 × 8.0/7.4 × 12/15

118/120

φ2000

5.5

24 ×7.0/6.4 × 12/15

126/128

φ2000+φ1800/φ1600+φ1200+φ900

6.5

24 × 8.0/7.4 × 12/15

126/128

7.2

24 × 9.2/8.4 × 12/15

126/128

φ2200

5.5

24 ×7.0/6.4 × 12/15

132

φ2200+φ1600+φ900

6.5

24 × 8.0/7.4 × 12/15

132

7.2

24 × 9.2/8.4 × 12/15

132

φ2500

7.2

24 ×9.2/8.6 × 12/15

140

φ2500+φ1600+φ1200+φ900

8

24 ×10.2/9.6 × 12/15

140

9

24 ×11.2/10.6 × 12/15

140








 1.φ250φ800mm   Diamond Saw Blades for edge cutting of slabs of Marble, Granite, Limestone etc. Suitable for Bridge Edge Cutting Machine and Manual Handling Machine. Silent type is available.

2.φ900φ3500mm  Diamond Segments and Circular Saw Blades for the Cutting of Block Marble, Granite, Sandstone, Limestone, Slate etc. Suitable for Bridge Cutting Machine and Single Arm Machine.

Wet use only.Easy and smooth cutting, Long lifespan and stable performance, Good cutting result.

Many saw blade styles and sizes offered, for granite and marble. Please contact us for more details.



Serve different sizes of segments for the blades.
