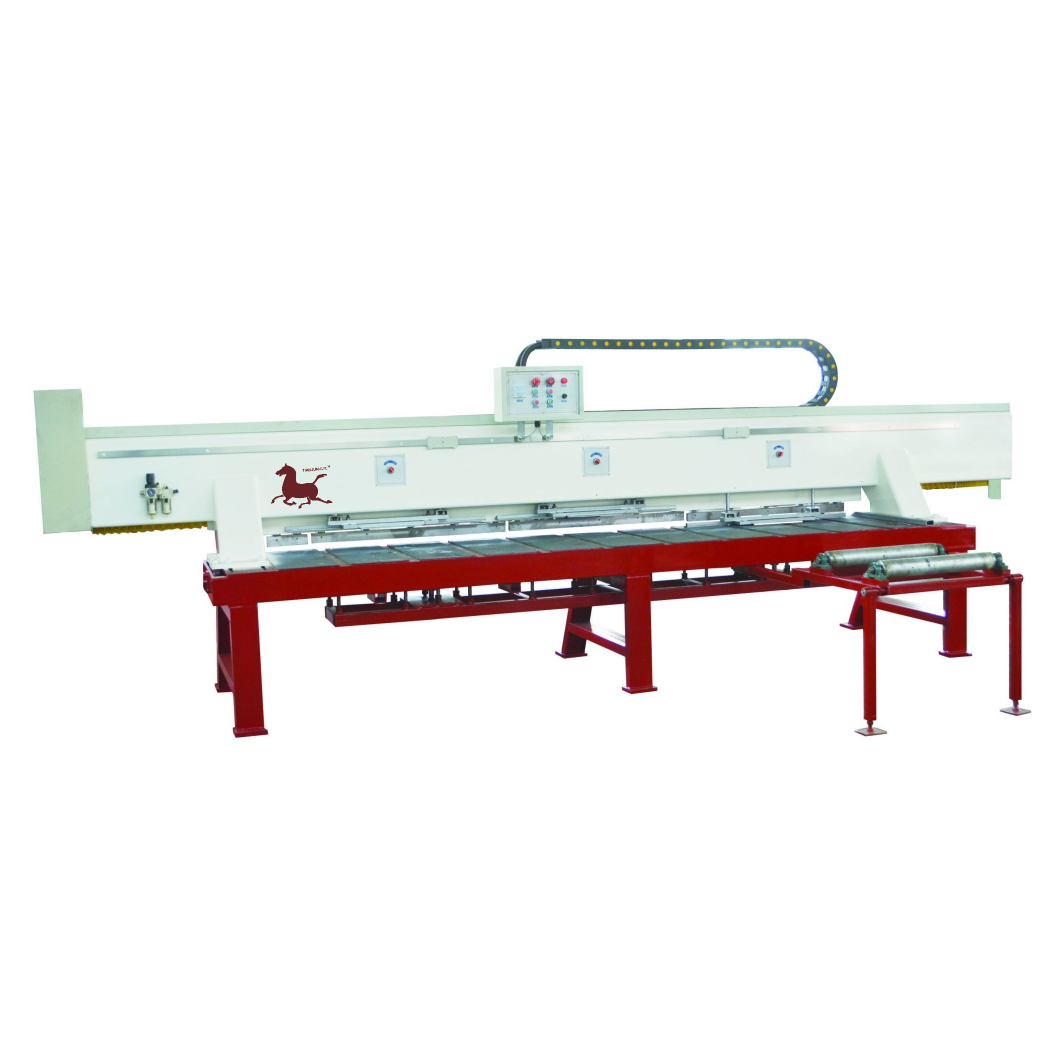

TJL-3200 Chamfering Machine

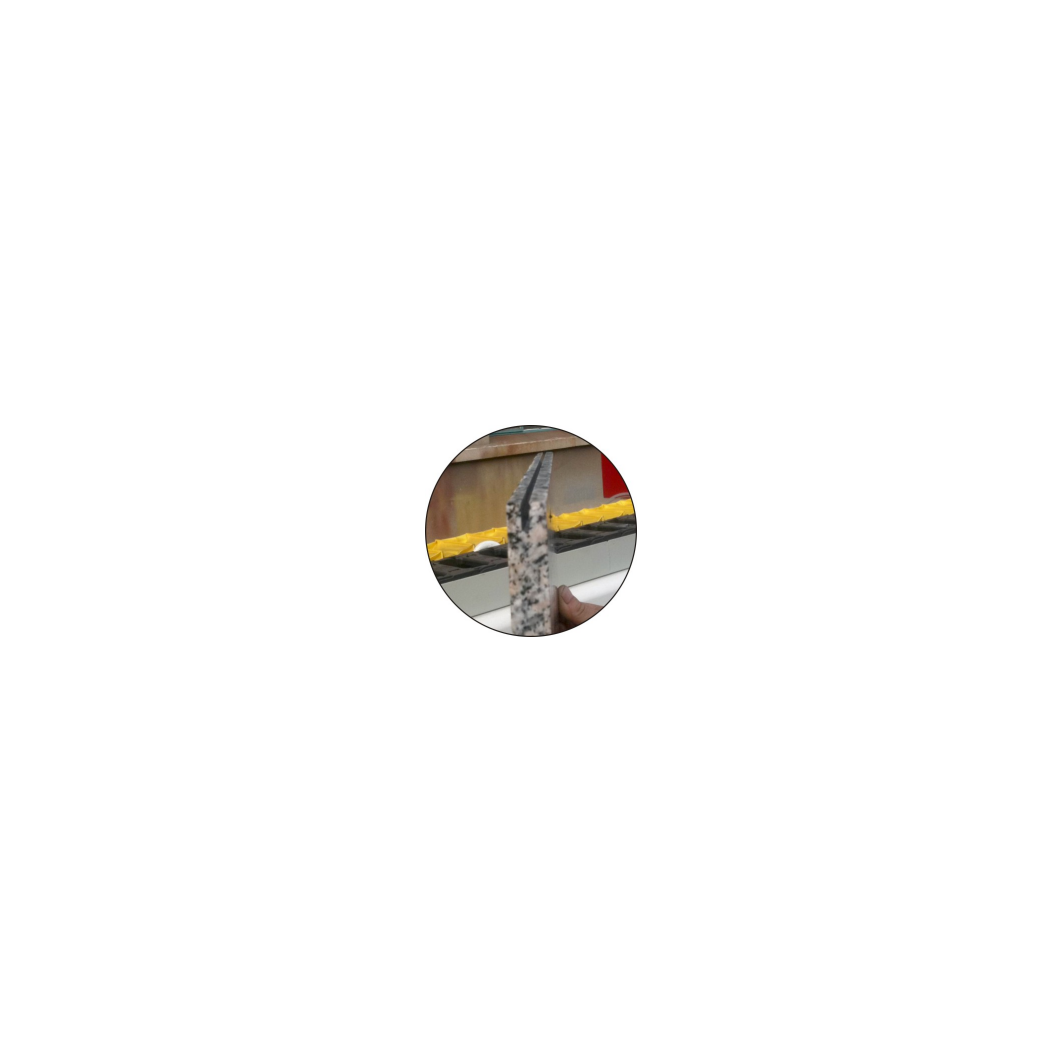

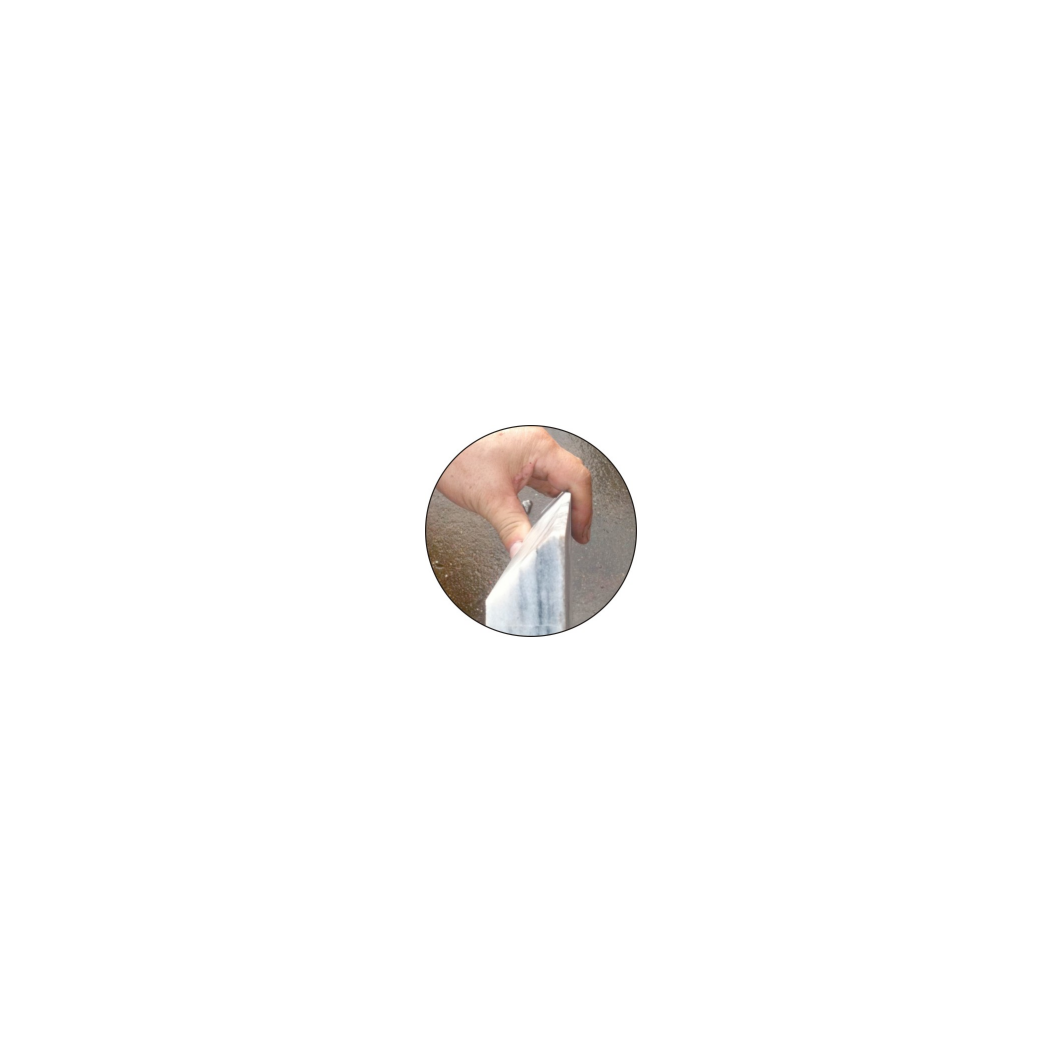

This machine is suitable for chamfering the opposite joint of marble and granite strips.

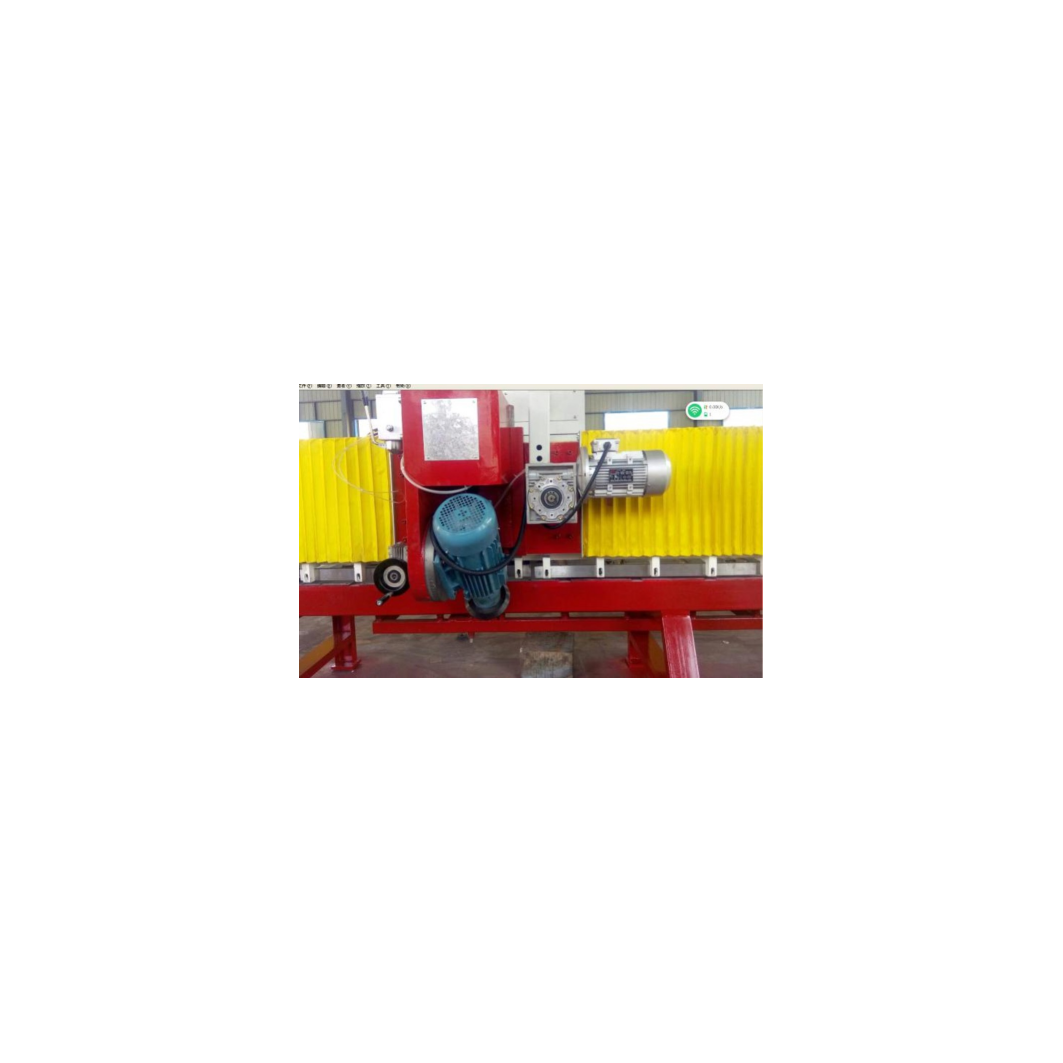

The blade rotates under the driving of the motor.

Worm gear reducer drives the gear to match with the racks, and drives the blade to move along the straight guile rail, thus to complete the stone chamfering process.

The cutting speed can be adjusted by frequency converter.

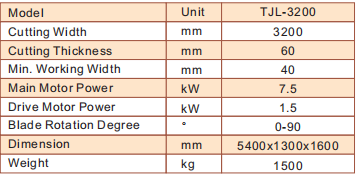

Model
TJL-3200
Blade Diametermm400 (blade inner hole 50)
Cutting Widthmm3200
Cutting Thicknessmm60
Main Motor PowerkW7.5
Travelling Motor PowerkW1.5
Dimensionmm5400×1300×1600
Weightkg1.5T

1.     The carling is removable forward and back on the worktable, can do thin plate slotting.

2.     Head can rotate 0-90°, chamfering angle is 29-61°.

3.     Universal ball, adding the function of lifting slab up and sown with the help of air cylinder.

4.     The min. working width is 40mm.
