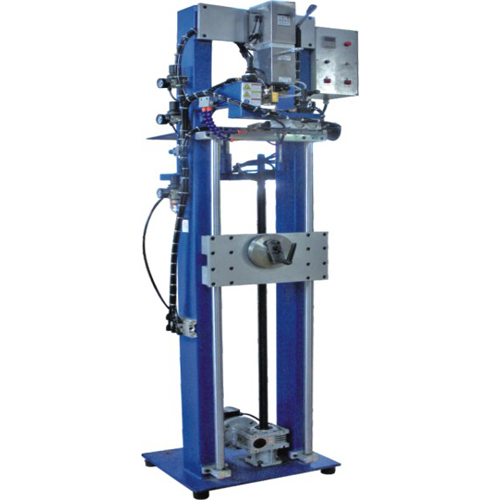

TJLQK Series Semi-automatic Diamond Blade Welding Rack

TJLQK series of diamond saw welding machine is a new type of diamond saw high-frequency welding auxiliary equipment. This series frame is the integration of mechanical and electrical system components. It can complete the high-frequency machine heating and rapid cooling, and clip the segment automatically.


The machine is consist of gas claws, pneumatic slider and other accessories. So it greatly enhance the welding accuracy and efficiency, and ensure the welding strength between the segment and the steel body.


Compared with similar products,  This series of products with a high level of automation, targeting prospective, good stability, long life and other characteristics. Also which  using human design and common workers can operate it easily.


Model
TJLQK-18TJLQK-22TJLQK-25TJLQK-30TJLQK-35
Welding Range(Diameter)mmФ350~Ф1900Ф350-Ф2200Ф350~Ф2500Ф350~Ф3100Ф350~Ф3500
Verticalitymm≤±0.03≤±0.03≤±0.03≤±0.03≤±0.03
Depth of Parallelismmm≤±0.03≤±0.03≤±0.03≤±0.03≤±0.03
Welding Speedpcs/h200~360200~360200~360200~360200~360
Pressure Of Air PowerMPa0.80.80.80.80.8
Pressure Of Water PowerMPa≥0.2≥0.2≥0.2≥0.2≥0.2
Motor PowerkW0.40.40.40.40.4
Water Consumptionm3/h22222
Weightkg135155200260300
Overall Dimensionmm900*750*1650900*670*2150900*670*24501000*670*24001000*670*2650
