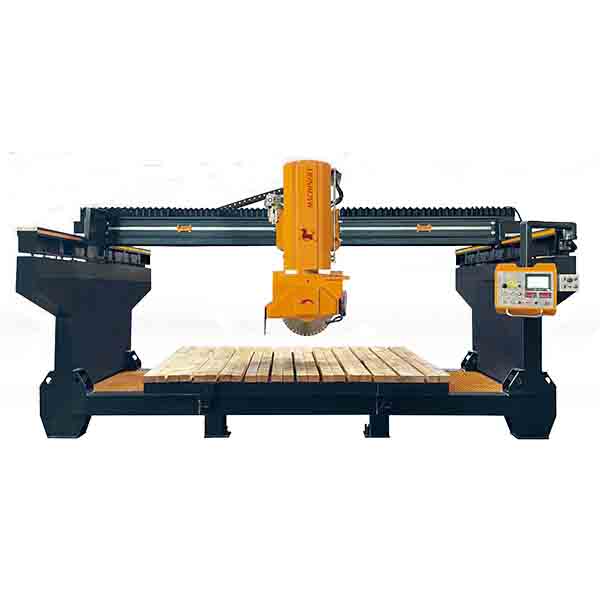

The Integrated edge cutting machine TJZD-350-4B

The machine adopts bridge type integrated structure, the bed frame is solid and stable, high stability;X, Y and Z axis adopt linear guide rail, high precision and flexibility;
1.Machine head plane rotation 0- 360";
2.he machine head has 45 automatic chamfering function, which can chamfer on four sides; Hydraulic transmission, strong stability; Industrial com puter with high- -speed bus control servo drive;
3.Cutting arc, circle, diamond, horse belly, arc line, wave line and CAD lead-in cutting;
4.no need to disassemble and load, easy to install on site;With a small area of only 15 square meters
5.easy to operate, processing speed, high precision,it is the most suitable stone processing equipment for small and medium-sized factory


ItemTJZD-350-4B
Max. Processing Dimension3200*1900*30MM
Saw blade diameter300-500MM
Main engine power15KW
Total Power20.5KW
Outline dimension5420*2870*2750MM
Weigth4T
Water consumpiton2m3/h
