1.The latest system, efficient and stable
2. X, Y axis 30 guide rail, Y axis can be equipped with double guide rails
3.XY reducer drive, Z-axis with brake function
4. Suitable for deep relief processing of exterior walls
1.The latest system, efficient and stable
2. X, Y axis 30 guide rail, Y axis can be equipped with double guide rails
3.XY reducer drive, Z-axis with brake function
4. Suitable for deep relief processing of exterior walls

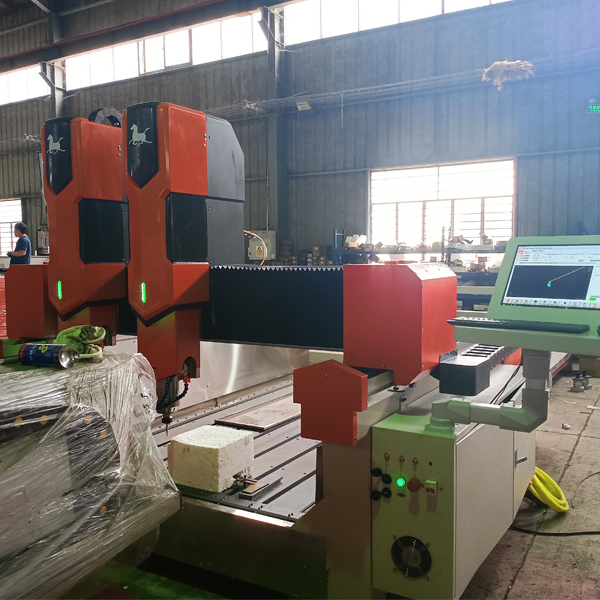

Model: TJCS-1530-2
Max Processing Size for X and Y Axis: 1500*3000mm
Max Loading Height: ≤400/700mm(customizable)
Main Motor Power: 7.5kW * 2

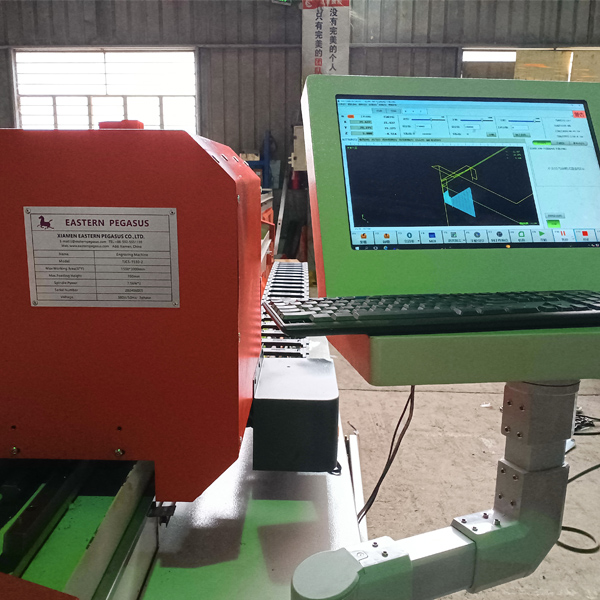

Control System: Genuine Weihong System
Control System Language: English and Arabic
Panel Language: English
Voltage: 380V/50HZ/3 Phase
Inverter: 7.5KW * 2
Motor: AC Full Servo
Guide Rail: X\Y Guide Rail, 30; Z25 (Y Axis with Oil Groove), Taiwan HIWIN Brand
Rack: Taiwan High Precision Rack
Ball Screw: Taiwan TPI2505 Ball Screw, PMI
Cooling System: Water Cooling
Lubrication System: Automatic Oil Lubrication System
Spindle Speed: 0-24000r/min
Other Accessories: Includes Computer, Monitor, Keyboard, Mouse
Machine Dimensions: Approximately 2300*4000*2000mm
Weight: ≈15000kgs
Worktable Dimensions: 1500x3000x500mm
