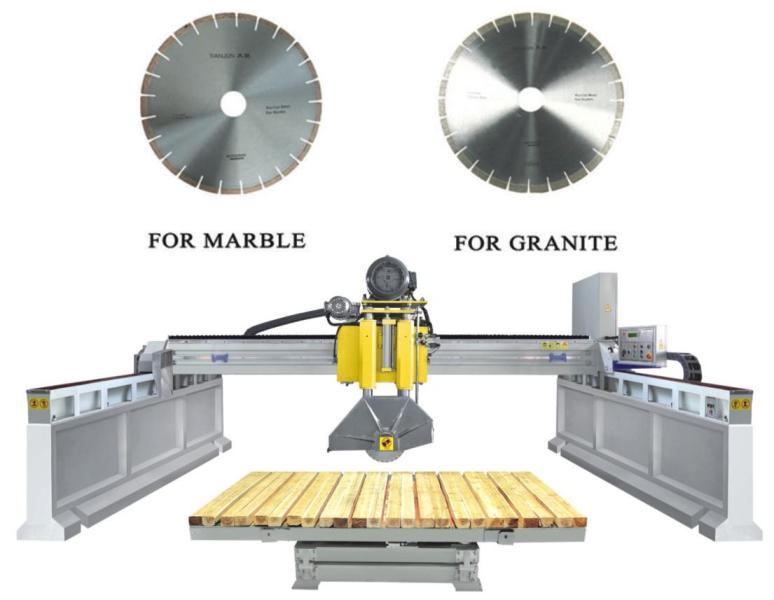

TJQH-600 Infrared Fully Automatic Bridge Type Edge Cutting Machine

Generally this machine is provided with fully automatic girder displacement positioning and microcomputer control, and is very high in automation level. Specialist for stone edge cutting work.


The main parts and components of the machine (such as frequency converter, magnetic rule, laser reticule apparatus.) are all of imported good-quality materials, thus ensuring high precision, stable performance, good adaptability as well as high reliability of the whole machine.


It is particularly applicable for cutting valuable and large stone plates

NameUnitTJQH-600
Blade diametermm350-600
Worktable Size (Max. Cutting Size)mm3200×2000
Blade Up/Down Strokemm220
Main Motor PowerkW15
Feeding Motor PowerkW1.5
Slicing Motor PowerkW1.1
Motorized Blade Tilt Angle
/
Worktable Rotation Angle(by Hydraulic)
90° or 360°
Worktable Upturning Angle
0°- 85°
Water Consumptionm3/min4
Voltage/FrequencyV/Hz380V/50Hz
Dimensions(L×W×H)mm6000*4700*2800
Weightkg6000


Please check this website to see how it works: http://v.youku.com/v_show/id_XMjA4MjI1NzQw.html
