TJHLS-12C/16C/20C/24C Automatic Polishing Machine for Granite slab upto 2000mm

Special for polishing the granite tile, width as 1200mm,  can be customized in different width then.

For the whole set, it includes the one loading table and one unloading table, one input conveyor, two output normal conveyor, one dryer, one gasholder, one air compressor.

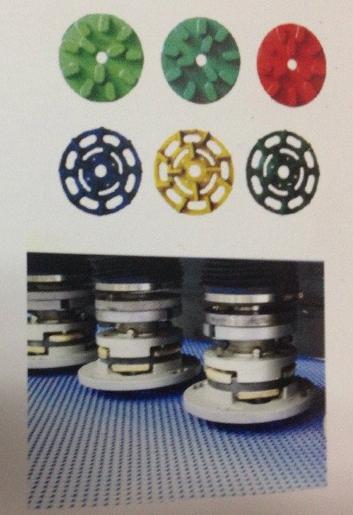

For the model, it is polishing with resin polishing plates.

Suitable to India market.

No.of heads12162024
Useful working widthmm400-1200400-1200400-1200400-1200
Useful working thicknessmm15-3015-3015-3015-30
Belt advancement speed mm/min0-20000-32000-32000-3200
Spindle motor powerkw7.
Total powerkw96126156186
Water consumptionm³/h17202325
Overall dimensions(L×W×H)mm7500×2150×22008800×2150×220010200×2150×220011200×2150×2200
